Aurora PostgreSQL in private VPC

Environment

• In VPC with Subnets and SGs for Lambda, FSx and EC2 instances behind an ALB on 2 AZ

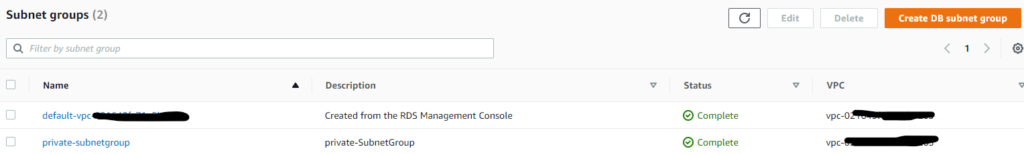

DB Subnet Group

• Create a new DB Subnet Group which includes all your private subnets in your env.

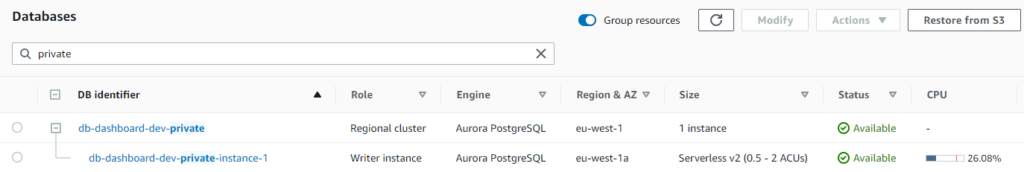

Database

• Under RDS / Databases, create database
• Go for Standard create

– Engine

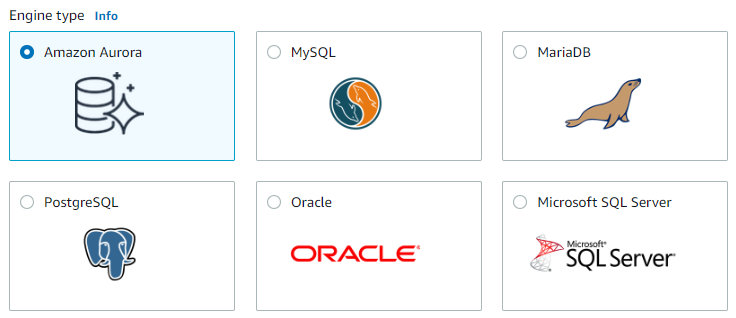

• Under Engine type, choose Amazon Aurora
• Under Edition, choose Amazon Aurora PostgreSQL-Compatible Edition
• Under Available versions, choose Aurora PostgreSQL (Compatible with PostgreSQL 14.5)

– Settings

• Under Templates, use the Dev/test template
• Specify the DB cluster identifier
• Specify the Master username and Master password and confirm password

– Instance configuration

• As DB instance class, choose Serverless
• In Capacity range, choose:
  • Minimum ACUs: 0.5 (1 GiB)
  • Maximum ACUs: 2 (4 GiB)

– Availability & durability

• Under Multi-AZ deployment, select Don’t create an Aurora Replica

– Connectivity

• Select the VPC
• Select the DB Subnet group previously created
• Select Public access: No
• Select the Security Groups
• Select AZ

– Additional configuration

• Use the TCP/IP port: 5432

Connect with pgAdmin

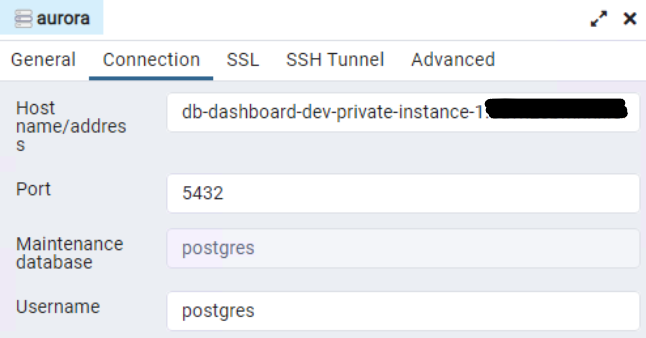

• Set the connection with the endpoint, Port, user ..
• Check you can connect

• Create a new database just for test
